SL8830 Non-Synchronous PWM Boost Controller for LED Driver

General Description

The SL8830 is boost topology switching regulator for LED driver. It provides built-in gate driver pin for driving external N-MOSFET. The non-inverting input of error amplifier connects to a 0.2V reference voltage. It has programmable soft start time set by external capacitor, and over voltage protection set by external resistor. The LED current can be adjusted by an external signal connecting to the EN pin. EN pin accepts either a DC voltage or a PWM signal. The PWM signal filter components are contained within the chip.

Features

Start-up Voltage: 2.5V

Wide Supply Voltage Operating Range: 4.5V to 24V

Precision Feedback Reference Voltage: 0.2V (Max.)

Analog and Digital Dimming Control

Shutdown Current: 6μA (Max.)

 Internal Fixed Switching Frequency: 300KHz

Programmable Soft Start Function (SS)

Programmable Over Voltage Protection (OVP)

Over Temperature Protection (OTP)

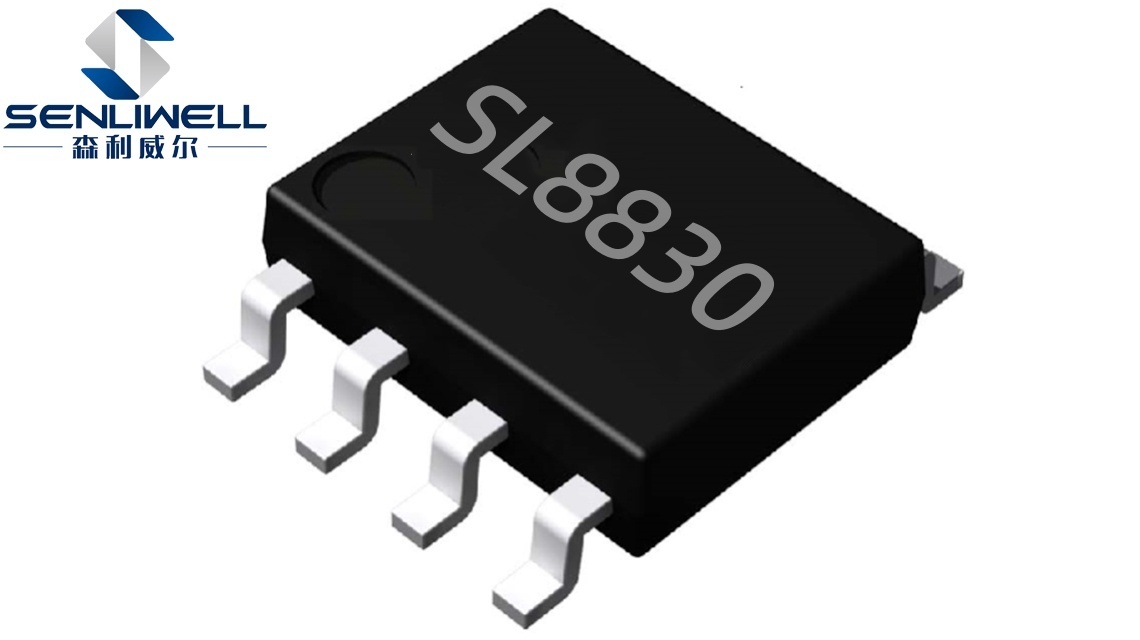

Package: SOP-8L(EP)

Applications

LED Module

Display Backlight

Car Lighting

Portable LED Lighting

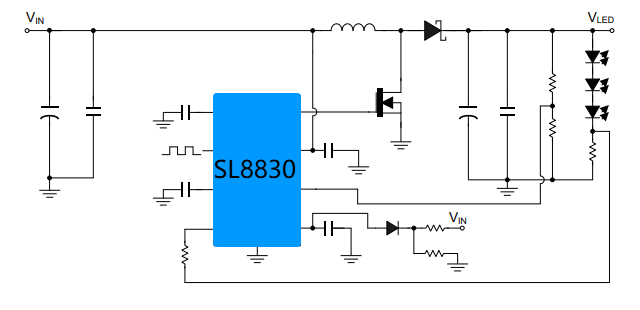

Typical Application Circuit
