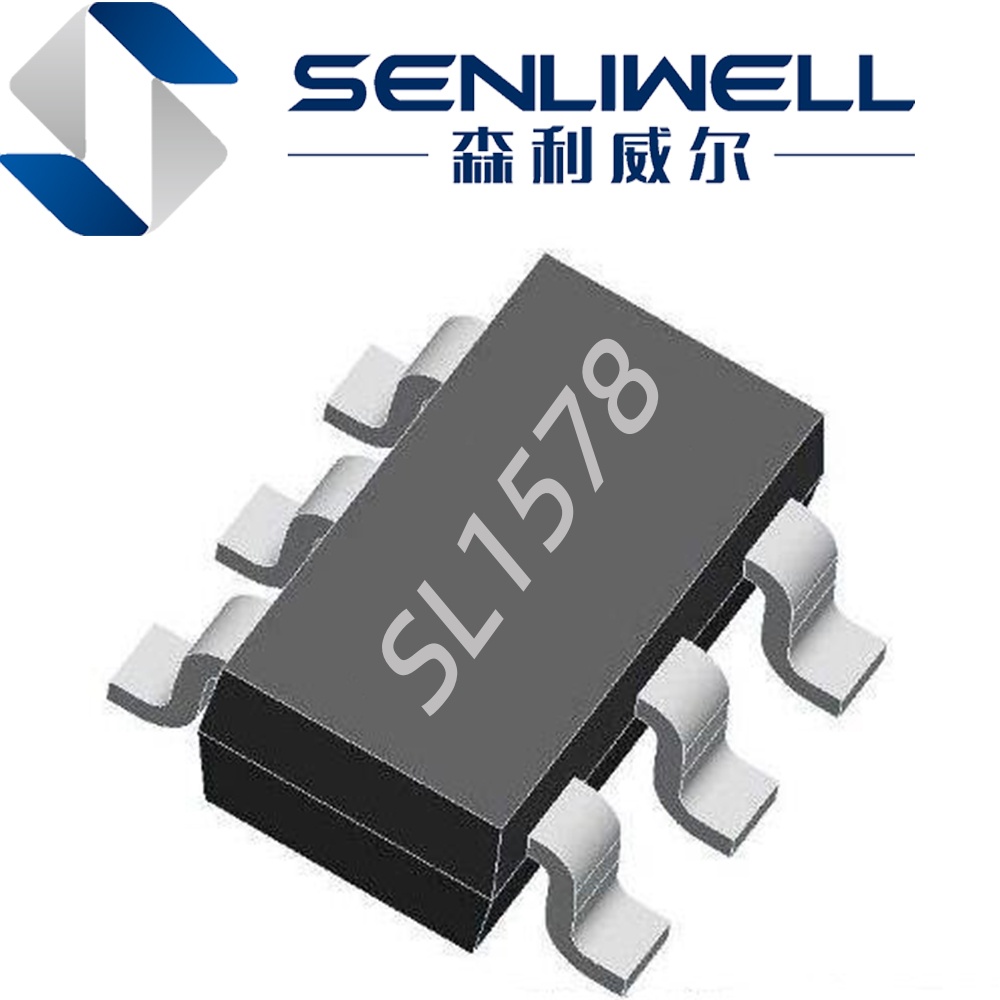

SL1578  High Efficlency 1.2MHz Step-Up Converter

General Description

The SL1578 is a constant frequency, current mode step-up converter  intended  for small,  low power applications. The SL1578 switches at 1.2MHz and allows  the use of  tiny,  low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life. The SL1578 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The SL1578 is available in a small 6-pin SOT23-6 package.

Features

Integrated 80mΩ Power MOSFET

Output Adjustable from 0.6V

2.5V to 24V Input Voltage

 Internal Compensation

Up to 28V Output Voltage

Thermal Shutdown

1.2MHz Fixed Switching Frequency

UP to 93% Efficiency

Internal 4A Switch Current Limit

MSL3 Package Level

 Applications

Battery-Powered Equipment

Set-top Box

DSL and Cable Modems and Routers

LCD Bias Supply

Tablet Personal Computer

Portable Media Player

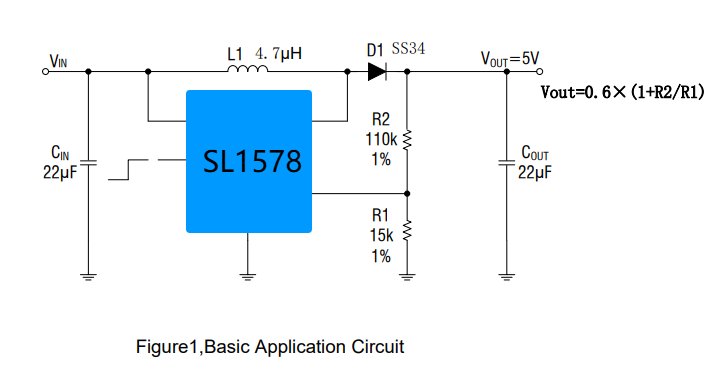

Simplified Application Circuit
