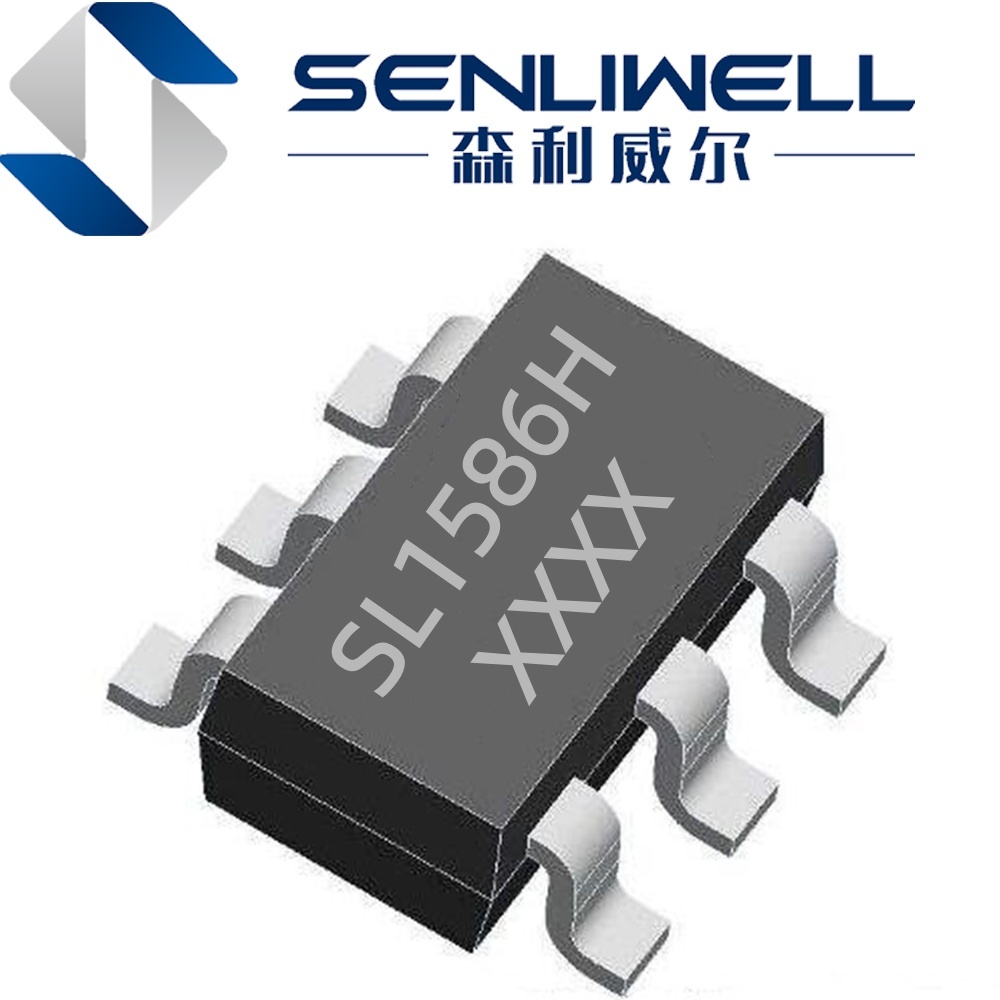

SL1586H 4.5-45V/1A 600KHz 0.8VFB Synchronous DCM BUCK

General Description

The SL1586H  is  a  low EMI signature, synchronous, step-down, switch-mode converter with internal power MOSFETs. It  offers a very compact  solution  to  provide 1.0A continuous current over a wide input supply range, with   excellent  load  and  line  regulation. SL1586H  achieves  low EMI  signature with well  controlled switching edges. Fault condition protection  includes programmable-output over-voltage protection, Constant on time  Mode,  and  thermal  shutdown. SL1586H  requires  a  minimal number of readily available standard external components. It is available in SOT23-6 package.

Features

•   Wide 4.5V to 45V Operating Input Range

•   360/200mΩ Low RDS(ON) Internal MOSFETs

•   1.0A Continuous Output Current

•   Output Adjustable from 0.8V

•   600KHz Switching Frequency

•   95% Duty cycle max

•   Short Protection with Hiccup-Mode

•   Thermal Shutdown

•   Built-in Over Current Limit

•   Current Mode

•   Low Nosie& Low EMI Signature

•   MSL3 Package Level

•   Integrated internal Soft-Start

Applications

•   Automotive Entertainment

•   IoT Applications

•   Wireless and DSL Modems

•   Digital Still and Video Cameras•   Computer Entertainment

•   Portable Instruments

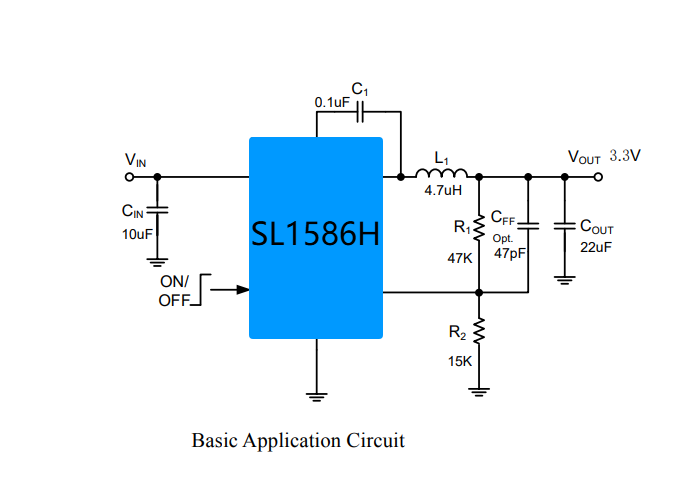

Simplified Application Circuit
