SL1588A 18V 2A 1.2MHz ECOT PWM Sync Step-Down Regulator

General Description

The SL1588A is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 2A continuous output current over a wide input supply range, with excellent load and line regulation. ECOT control operation provides very fast transient response and easy loop design as well as very tight output regulation.

The SL1588A requires a minimal number of readily available, external components and is available in a space saving SOT23-6 package.

Features

•   Wide 4.5V to 18V Operating Input Range

•   Output Adjustable from 0.6V

•   2A Continuous Output Current

•   No Schottky Diode Required

•   1.2MHz Switching Frequency

•   Short Protection with Hiccup-Mode

•   ECOT Mode Control with Fast Transient Response

•   Integrated internal compensation

•   Thermal Shutdown

•   Built-in Over Current Limit

•   Available in SOT23-6 Package

•   Built-in Over Voltage Protection

•   -40°C to +85°C Temperature Range

•   Force-PWM Mode

•   Internal Soft-Start

Applications

•   Digital Set-top Box (STB)

•   Digital Video Recorder (DVR)

•   Tablet Personal Computer (Pad)

•   Portable Media Player (PMP)

•   Flat-Panel Television and Monitor

•   Wi-Fi Router / AP

•   Cable Modem / XDSL

•   General Purposes

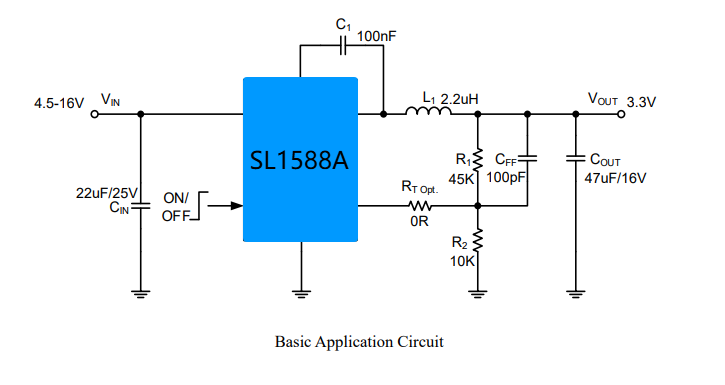

Typical Application Circuit
