SL3065 40V High Efficiency Synchronous Step-Down DC/DC Controller

Description

 SL3065 is a high efficiency, monolithic synchronous step-down DC/DC converter utilizing a

Jitter frequency, average current mode control architecture. Capable of driving up to 20A

continuous load with excellent line and load regulation. The device operates from an input voltage

range of 7.5V to 36V and provides an adjustable output voltage from 3.3V to 36V.

The SL3065 features short circuit and thermal protection circuits to increase system reliability. The internal soft-start avoids input inrush current during startup.

The SL3065 require a minimum number of external components. and a wide array of

protection features to enhance reliability.

Features

⚫ VIN Range: 7.5V to 36V

⚫ Up to 20A Output Current

⚫ Up to 96% Efficiency @ 24V Input

⚫ Dual-Channel CC/CV Mode Control

⚫ Brick Wall Current Limit

⚫ Built in Adjustable Line-Compensation

⚫ Adjustable Output Voltages

⚫ Output Voltage Accuracy: ±2%

⚫ Current Limit Accuracy: ±4mV

⚫ Programable Frequency: 130kHz/260kHz

⚫ Burst Mode Operation at Light Load

⚫ Internal loop Compensation

⚫ Internal Soft Start

⚫ Thermally Enhanced QFN3*3-16 Package

Applications

⚫ Charger

⚫ Rechargeable Portable Devices

⚫ Networking Systems

⚫ Distributed Power Systems

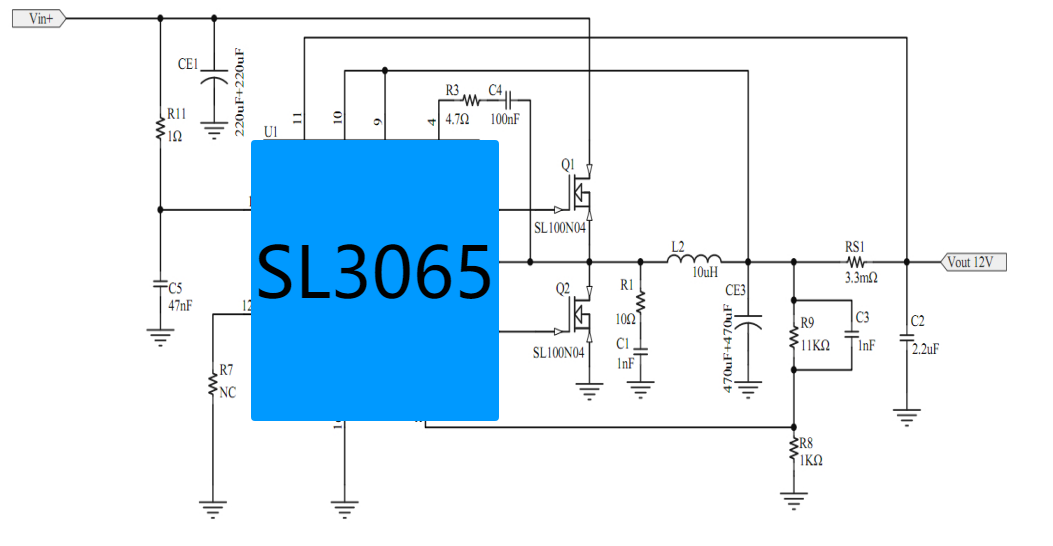

Typical Application
