SL1595 30V/6A Peak Frequency-ADJ PFM/CCM Buck

General Description

The SL1595 is a low EMI signature, synchronous, step-down, switch-mode converter with internal power MOSFETs.It offers a very compact solution to provide 5A continuous current over a wide input supply range, with excellent load and line regulation. SL1595 achieves low EMI signature with well controlled switching

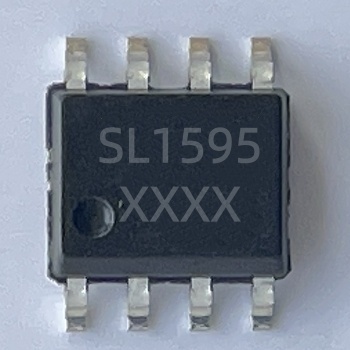

edges. Fault condition protection includes programmable-output over-voltage protection, Constant on time Mode, and thermal shutdown. SL1595 requires a minimal number of readily available standard external components. It is available in ESOP8 package.

Features

• Wide 4.0V to 30V Operating Input Range

• 25/18mΩ Low RDSON Internal MOSFETs

• 5A Continuous Output Current

• Output Adjustable from 0.8V

• Switching Frequency ADJ

• 100% Duty cycle max

• Short Protection with Hiccup-Mode

• Thermal Shutdown

• Built-in Over Current Limit

• COT Mode

• Integrated internal Soft-Start

• MSL3 Package Level

Applications

• Automotive Entertainment

• IoT Applications

• Wireless and DSL Modems

• Digital Still and Video Cameras

• Computer Entertainment

• Portable Instruments

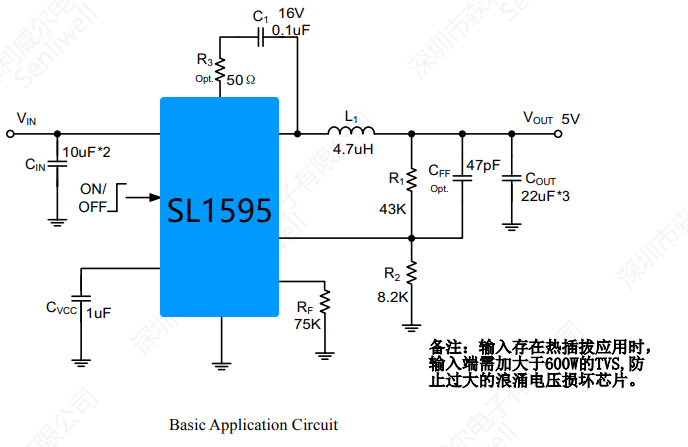

Simplified Application Circuit
