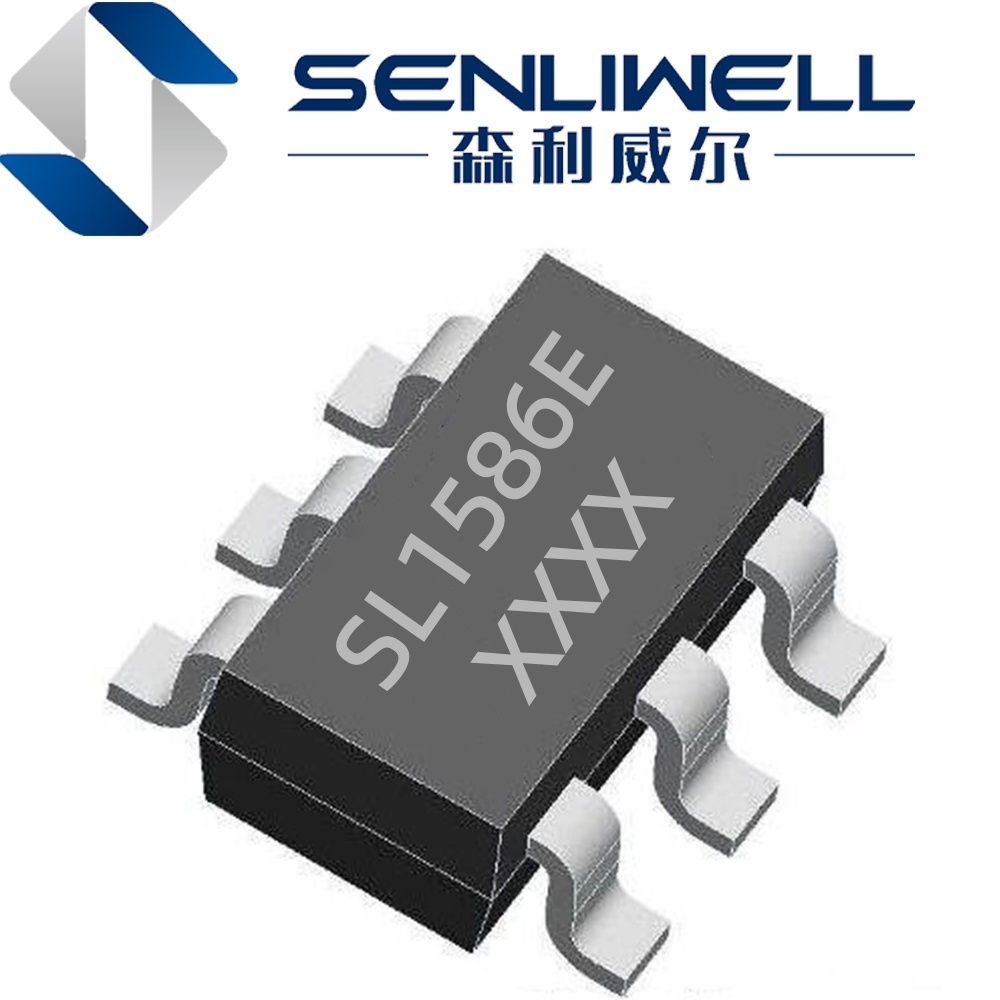

SL1586E 30V/2A 680KHz 0.6VFB Synchronous DCM Converter

General Description

The SL1586E is a low EMI signature, synchronous, step-down, switch-mode converter with internal pow er MOSFETs.It offers a very compact solution to provide 2A continuous current  over  a  wide  input  supply range,    with  excellent  load  and  line  regulation. SL1586E  achieves  low EMI  signature with well  controlled  switching  edges.  Fault  condition  protection     includes    programmable-output   over-voltage   protection, Constant on time Mode, and thermal shutdown.SL1586E requires  a  minimal  number  of  readily available standard external components. It is available in SOT23-6 package.

Features

•  Wide 4.0V to 30V Operating Input Range

 •  120/80mΩ Low RDSON Internal MOSFETs

•  2A Continuous Output Current

•  Output Adjustable from 0.6V

•  680KHz Switching Frequency

•  95% Duty cycle max

•  Short Protection with Hiccup-Mode

•  Thermal Shutdown

•  Built-in Over Current Limit

•  COT Mode

•  Integrated internal Soft-Start

•  MSL3 Package Level

Applications

•  Automotive Entertainment

•  IoT Applications

•  Wireless and DSL Modems

•  Digital Still and Video Cameras•  Computer Entertainment

•  Portable Instruments

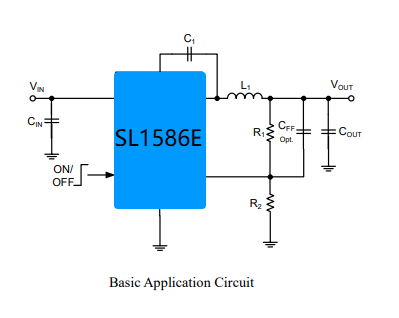

Simplified Application Circuit
