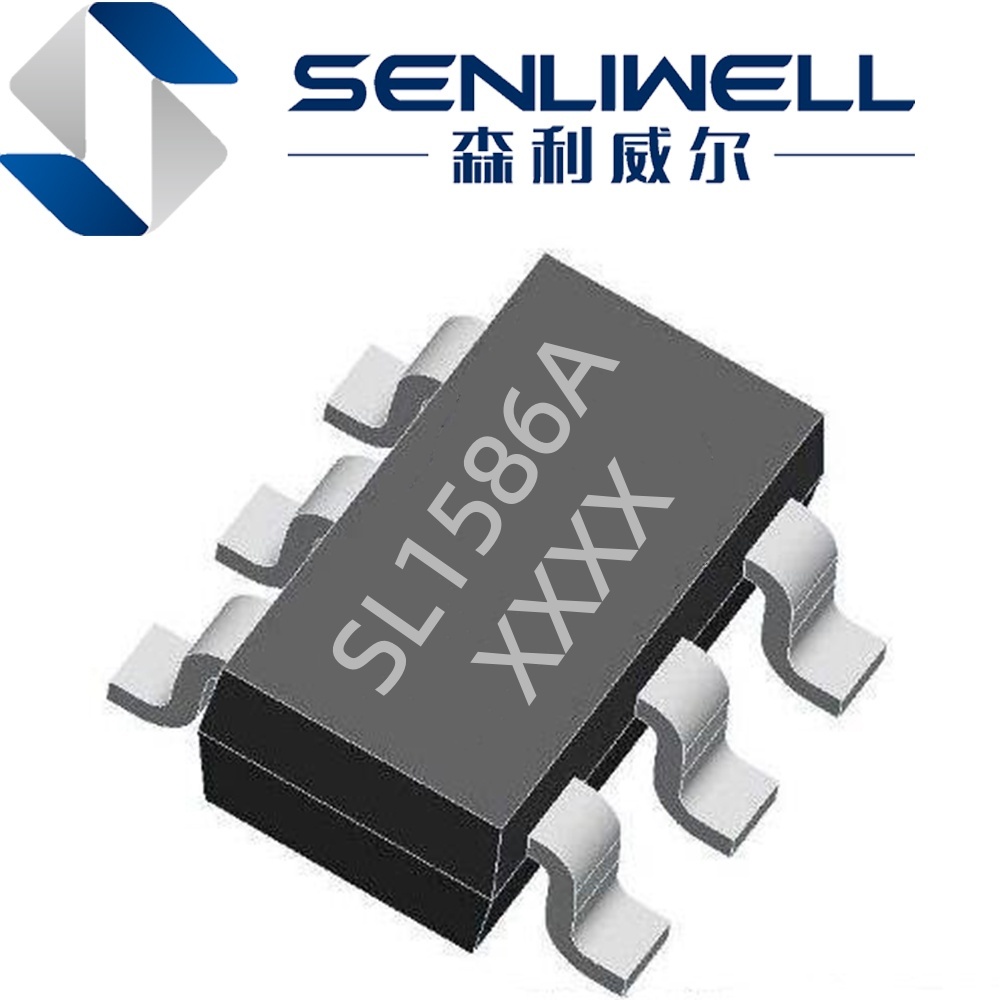

SL1586A 28V 2A 500K ECOT CCM Sync Step-Down Re gulator

Features

•   Wide 4.5V to 28V Operating Input Range •   2A Continuous Output Current

•   500K Switching Frequency

•   ECOT Mode Control with Fast Transient Response •   Built-in Over Voltage Protection

•   Built-in Over Current Limit

•   Continuous Conduction Mode (CCM)

•   Internal Soft-Start

•   100mΩ/50mΩ Low RDS(ON) Internal Power MOSFETs

•   Output Adjustable from 0.6

•   No Schottky Diode Required

•   Short Protection with Hiccup-Mode

•   Integrated internal compensation

•   Thermal Shutdown

•   Available in SOT23-6 Package

•   -40°C to +85°C Temperature Range

Applications

•   Automotive Systems

•   Security Monitoring Camera

•   Printer Systems

•   Distributed Power Systems

•   Network Terminal Equipment

•   Industrial Power Systems

General Description

The SL1586A is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 2A continuous output current over a wide input supply range, with excellent load and line regulation. ECOT force-CCM control operation provides very fast transient response and easy loop design as well as very tight output regulation.

The SL1586A requires a minimal number of readily available, external components and is available in a space saving SOT23-6 package.

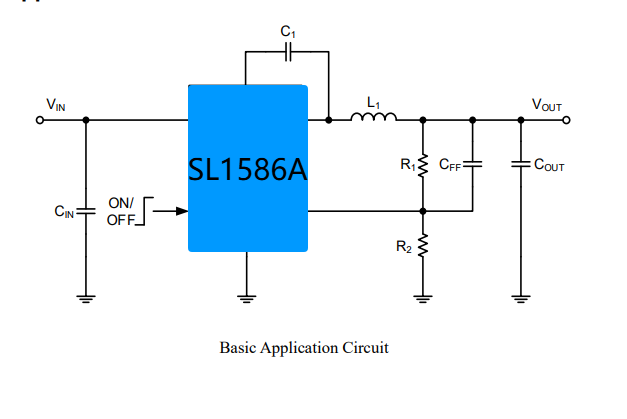

Typical Application Circuit
