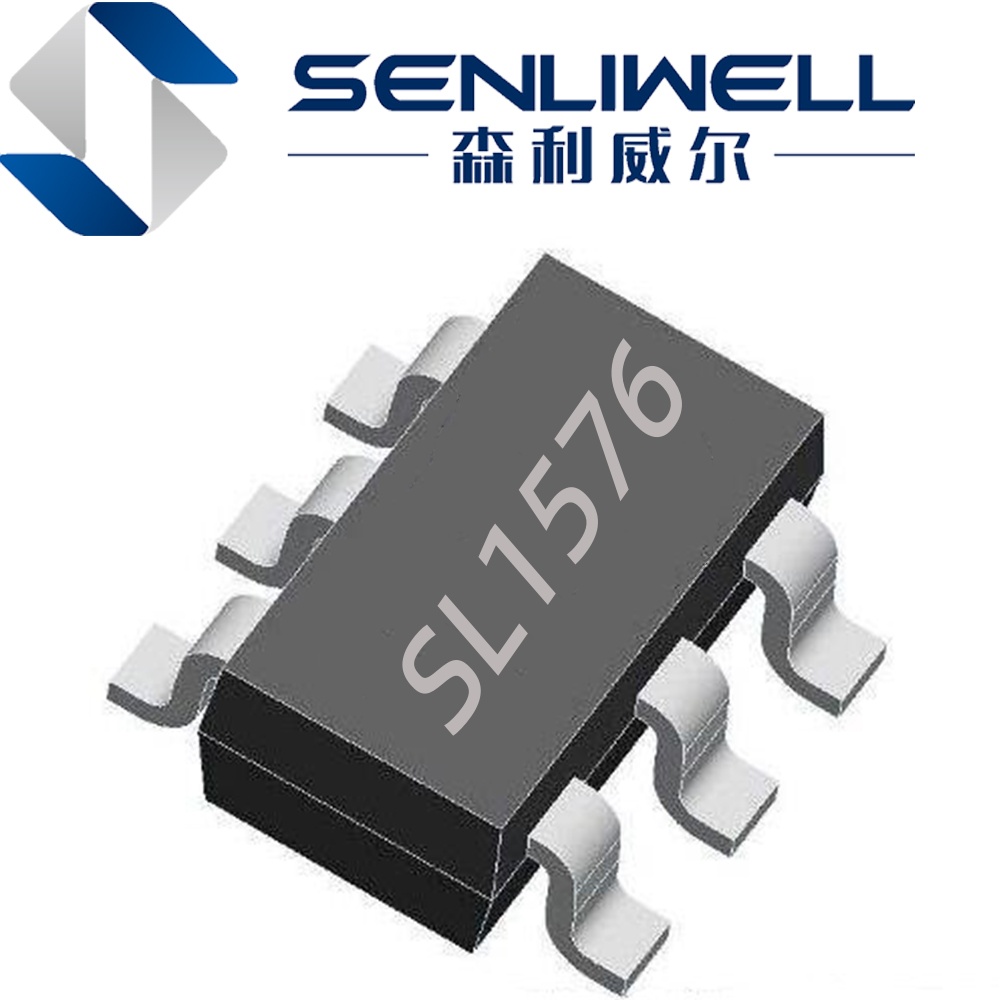

SL15762.5A High Efficlency 1.2MHz Step-Up Converter

GENERAL DESCRIPTION ：

 FEATURES The  SL1576   is a constant  frequency, 6-pin SOT23 current mode step-up converter intended for small,  low power  applications. The SL1576  switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life.

The SL1576  features automatic shifting to pulse frequency modulation mode at  light  loads. The SL1576  includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The SL1576   is available  in a small 6-pin SOT-23 package.

FEATURES：

⚫  Integrated 80mΩ Power MOSFET

⚫  2.2V to 16V Input Voltage

⚫  1.2MHz Fixed Switching Frequency

⚫  Adjustable Over Current Protection: 0.5A ~2.5A

⚫  Internal 2.5A Switch Current Limit(OC pin floating)

⚫  Adjustable Output Voltage

⚫  Internal Compensation

⚫  Over Voltage Protection

⚫  Up to 20V Output Voltage

⚫  Automatic Pulse Frequency Modulation Mode at Light Loads

⚫  up to 93% Efficiency

⚫  Available in a 6-Pin SOT23-6 Package

APPLICATIONS：

⚫  Battery-Powered Equipment

⚫  Set-Top Boxed

⚫  LCD Bais Supply

⚫  DSL and Cable Modems and Routers

⚫  Networking cards powered from PCI or PCI express slots

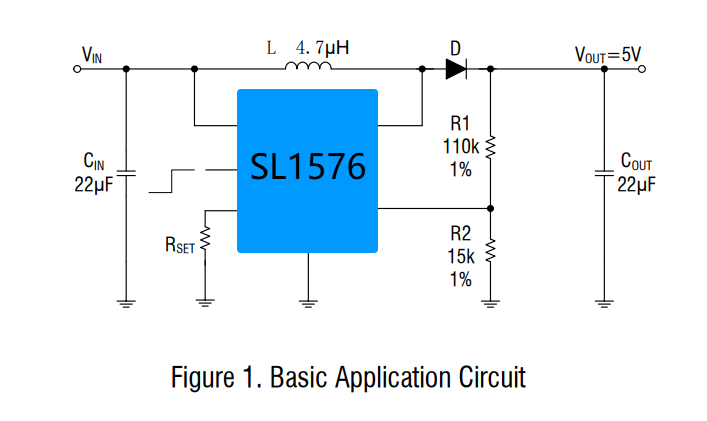

TYPICAL APPLICATION：
