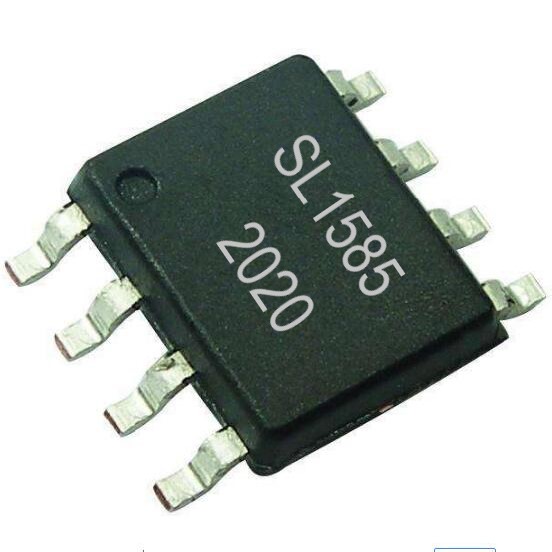

SL1585

SL1585

DC-DC降压恒压

型号:SL1585
封装:ESOP-8
输入范围:4.0V-30V
输出电压:0.8V-12V
输出电流:3A
工作频率:500KHZ
驱动MOS管:内置
静态电流:600uA
关断电流:1uA
立即询价

30V 3A 500KHz Synchronous Step-Down Regulator


General Description

The SL1585 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power

MOSFETs. It offers a very compact solution to achieve a 4A peak output current over a wide input supply range,

with excellent load and line regulation.

The SL1585 requires a minimal number of readily available, external components and is available in a space saving

ESOP8 package.


Features

Wide 4V to 30V Operating Input Range

3A Continuous Output Current

Fixed 500KHz Switching Frequency

No Schottky Diode Required

Short Protection with Hiccup-Mode

Built-in Over Current Limit

Built-in Over Voltage Protection

Internal Soft start

Output Adjustable from 0.925V

Integrated internal compensation

Thermal Shutdown

Available in ESOP8 Package

-40°C to +85°C Temperature Range


Applications

CCTV Camera

Flat-Panel Television and Monitor

Battery Charger

Distributed Power Systems


Typical Application Circuit



索要更详细资料 请联系销售人员!
