SL1586C

30V/1.5A 1.4MHz 0.8VFB Synchronous BUCK

General Description

The SL1586C is a low EMI signature, synchronous, step-down, switch-mode converter with internal power

MOSFETs. It offers a very compact solution to provide 1.5A continuous current over a wide input supply range, with excellent load

and line regulation. SL1586C achieves low EMI signature with well controlled switching edges. Fault conditio

nprotection includes programmable-output over-voltage protection, Constant on time Mode, and thermal shutdown.

SL1586C requires a minimal number of readily available standard external components. It is available in SOT23- 6package.

Features

• Wide 4.0V to 30V Operating Input Range

• 1.5A Continuous Output Current

• 1.4MHz Switching Frequency

• Short Protection with Hiccup-Mode

• Built-in Over Current Limit

• Over-Voltage Protection

• CCM Mode for Low Nosie

• Integrated internal Soft-Start

• 200/150mΩ Low RDS(ON) Internal MOSFETs

• Output Adjustable from 0.8V

• Low EMI Signature

• 98% Duty cycle

• Integrated internal compensation

• Thermal Shutdown

• Available in SOT23-6 Package

• Constant on time Mode

Applications

• Automotive Entertainment

• Wireless and DSL Modems

• Computer Entertainment

• Power Supply for DVR/NVR/IPC

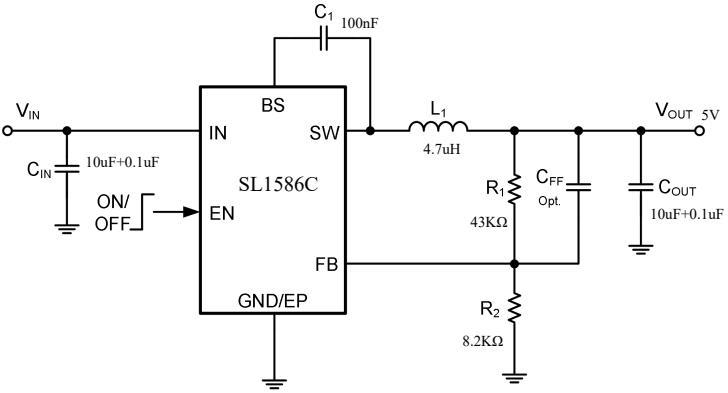

Typical Application Circuit
